CW599 ORIGINAL OPERATING WORKFLOW
FLEX-8600/MCW Operating Guide

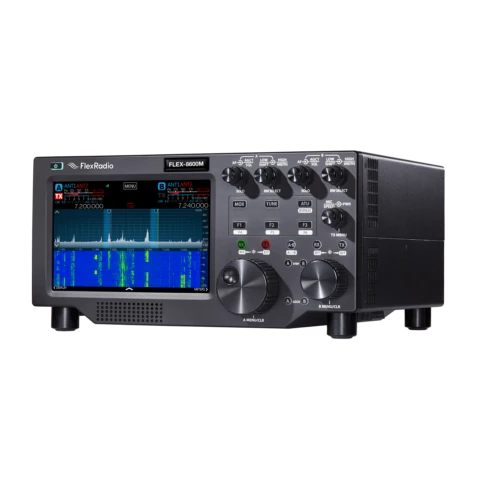

FLEX-8600 and FLEX-8600M provide four slice receivers and two independent spectral capture units. This guide follows SmartSDR for Windows, including an M radio connected to that client. Use the hardware manual for standalone M-panel controls. The photograph shows the M version; separate receiving paths do not create a second transmitter.
FLEX-8600/MCW operating workflow
SmartSDR for Windows guide Rev v4.1.6 (April 2026), checked with v4.2.20 release notes; FLEX-8000 Hardware Reference v1.0.20241126. Checked 2026-09-27; printed page numbers. Covers original firmware and the Windows client, including M radios connected to it. Standalone M, Maestro and third-party clients differ. Licenses and regional transmit limits vary. Back up profiles and read the release-specific upgrade instructions before changing versions.
START HERE
A five-step CW setup routine
Use this order as an operating checklist, not as a replacement for the radio manual. Controls and available options can vary by firmware and region.
Check the test setup
Use a suitable dummy load and low power for the first key or macro test; check Local PTT and the TX slice.
Set rhythm and tone
Set IAMBIC, Speed, Sidetone and Pitch.
Tune one signal
Tune one slice and narrow its filter first; if diversity is needed, separately verify DIV, both antennas and headphone channels.
Send and listen
Check TX flag, antenna and power; send one short message and stop.
MODEL SETTINGS INDEX
CW settings, paths, and starting points
Search by setting or menu path. Manufacturer defaults and recommendations are labeled separately from CW599 advice; references identify the checked manual or software version.
Receive
Choose the CW slice and transmit flag
- Access path
Slice control > mode CW; TX flag- Options or range
- CW mode; one intended transmit slice
- Factory value / operating start
- CW599: verify TX flag, antenna and power before touching a key or starting a macro.
CW599 note: Select CW on the intended slice, then verify its TX flag separately. In split operation, listening to slice A does not prove that slice A is the transmit frequency. For split, listen to the other station on A and set B to your intended transmit frequency, explicitly checking B’s TX flag. Active-slice selection, DIV linking and TX selection are different controls.
Memory / PC
Confirm where the physical key transmits
- Access path
Settings > multiFLEX > Local PTT > Enable- Options or range
- Station assigned to Local PTT
- Factory value / operating start
- CW599: check ownership before sending when a front panel and PC are both connected.
CW599 note: A key or footswitch connected to the radio follows the station designated Local PTT, which may differ from the window you are watching. Click Enable at the intended station and confirm its checkmark, then inspect that station’s TX slice. One connected station receives the assignment automatically; multi-client use depends on licensing and available resources.
Keyer
Enable the internal keyer only for paddles
- Access path
CW transmit panel > IAMBIC; Radio Setup > Phone/CW- Options or range
- IAMBIC on/off; mode A/B
- Factory value / operating start
- Manual IAMBIC default: on.
CW599 note: Enable IAMBIC for a paddle and disable it for a straight key or external keyer. Select the familiar A/B response, then verify both contacts before transmitting. Use a TRS KEY plug: straight key between tip and sleeve, ring unconnected; paddle dot to tip, dash to ring and common to sleeve, with swap available in Phone/CW. First check each contact and release into a suitable dummy load at low power.
Keyer
Set keyer speed and check CWX separately
- Access path
CW transmit panel > Speed; CWX speed- Options or range
- 5–100 WPM
- Factory value / operating start
- CW599: begin at a familiar low speed and check both paddle and CWX speed readouts.
CW599 note: Set a speed you can copy and rehearse a short message. CWX has its own speed control unless synchronization is configured; do not assume a typed macro matches your paddle setting.
Manual reference: SmartSDR User Guide v4.1.6, pp. 110, 134, 253–254
Receive
Set sidetone level and pitch
- Access path
CW transmit panel > Sidetone / Pitch- Options or range
- Monitor on/off, level and pan; pitch in 10 Hz steps
- Factory value / operating start
- CW599: start with quiet monitoring, then choose a comfortable pitch.
CW599 note: Enable sidetone and use a modest headphone level. Confirm where audio is being monitored; network PC audio and local keying do not always provide the same sidetone path.
Break-in
Set automatic keying and recovery delay
- Access path
CW transmit panel > Breakin / Delay- Options or range
- Breakin on/off; 0–2000 ms
- Factory value / operating start
- Manual Breakin default: on; CW599: inspect the state before touching the key.
CW599 note: Breakin lets the key start transmission; Delay controls return to receive, with zero selecting full QSK. The manual excludes QSK when the internal ATU is enabled on a shared transmit/receive antenna. Using ATU and QSK together requires a separate receive antenna port. On the 8600, RX-A and RX-B serve independent SCUs: verify the connected antenna and selected input agree. Start with a finite delay and a low-power dummy-load test, listening for recovery. Breakin off does not inhibit every CWX or PTT source.
Receive
Tune and narrow the intended slice
- Access path
CW slice > receive filter presets- Options or range
- CW presets and passband in the installed firmware
- Factory value / operating start
- New defaults listed by v4.2.20 notes: 50 / 100 / 250 / 500 Hz, 1 / 3 kHz. Retained settings can still show older values.
CW599 note: Center the wanted carrier in the audible slice, then narrow while comparing readability. The v4.2.20 notes describe the 1 and 3 kHz presets as pitch-aware; user-configurable receive presets require SmartSDR+. The notes tie the new defaults to a factory reset. Do not reset simply to make buttons match this list: export profiles and follow the manufacturer’s upgrade procedure.
Manual reference: SmartSDR User Guide v4.1.6, p. 131; v4.2.20 Release Notes, pp. 2–3
Receive
Use Auto Tune as tuning assistance
- Access path
Active Slice > AUTOTUNE- Options or range
- One Shot / Intermittent; SmartSDR+ required
- Factory value / operating start
- CW599: isolate one wanted signal in the passband and try One Shot first.
CW599 note: One Shot scans once; Intermittent repeatedly follows the strongest in-passband signal every two seconds. Watch the frequency change and confirm by ear. A stronger neighbor can capture tuning: stop intermittent tracking, retune manually and narrow before retrying. The setting survives power cycles, so inspect it before use. It does not convert received Morse into text or guarantee selection of your intended station.
Receive
Compare diversity reception on two antennas
- Access path
Slice Audio > DIV; RX-A / RX-B- Options or range
- Two SCUs, separate receive antennas and headphones
- Factory value / operating start
- CW599: establish readable single-slice audio before comparing DIV on and off.
CW599 note: Connect separate receive antennas to independent inputs, for example RX-A and RX-B. Enable DIV in Slice Audio and confirm the new slave slice follows the master frequency, with the two signals routed to opposite headphone channels. Compare readability during QSB without expecting a fixed improvement. If one side is silent or copying worsens, disable DIV, check antenna selection, mute and audio routing, then retry. DIV provides same-frequency reception; it does not configure split transmission or decode text.
Break-in
Check FDX requirements before cross-band listening
- Access path
Lower Menu Bar > Application Launcher > FDX- Options or range
- FDX on/off; separate TX/RX antennas and slices
- Factory value / operating start
- CW599: leave FDX off for an ordinary CW contact.
CW599 note: With FDX enabled, the transmitting slice and other slices on its antenna mute; receive slices on different antennas can remain audible. This differs from between-element QSK and same-frequency DIV. Enable it only when cross-band listening during transmission is needed and antenna isolation, filtering and receiver input limits have been assessed using the manuals. Do not copy isolation numbers from older 6000-series examples. Check the TX flag, TX/RX antenna choices and FDX state, then test at low power; stop transmitting if overload or abnormal reception occurs.
Memory / PC
Use CWX standard sending first
- Access path
CWX > Live off > text > Send- Options or range
- Standard / Live keyboard sending
- Factory value / operating start
- CW599: start with Live off and verify stopping into a dummy load at low power.
CW599 note: With Live off, review the full text before Send or Enter. Live sends as you type. Escape or a tap of the key stops sending; prove that stop action before a long macro.
Memory / PC
Save macros with the station profile
- Access path
CWX > Setup > F1–F12; Global profile Save- Options or range
- Twelve CWX hot-key messages
- Factory value / operating start
- CW599: reload and inspect your callsign after saving; export a separate backup before upgrades.
CW599 note: Store your callsign and a short exchange, then save the Global profile. Reload and inspect the messages before a contest; a profile change can also change the slice and transmit setup. A Global profile with no stored CWX messages leaves existing messages in place, so inspect them after every profile change.
No matching settings. Try a shorter search or clear the search and category.
CW599 RECOMMENDATIONS
Three operating starting points
These are original operator-oriented starting points. They are not factory presets and intentionally avoid claiming model-specific default values.
First contact
Check one change at a time.
- Keying: Match the actual key and verify clean spacing
- Transmit: Check the documented RF-off or dummy-load setup first
- Receive: Use a comfortable tone and moderate volume
Difficult reception
Keep the wanted signal audible.
- Tuning: Center the wanted note before narrowing
- Filter: Compare changes at a similar audio level
- Copying: Ask for a repeat when a callsign remains uncertain
Repeated calls
Leave a clear path back to receiving.
- Sending: Verify any supported message and its stop action
- Listening: Leave time for an answer
- Station: Confirm frequency, power and transmit recovery
Questions and troubleshooting
Does it decode received CW?
The checked documentation does not provide a built-in received-CW text workflow for FLEX-8600/M. CWX is a keyboard-to-CW transmitter. Receiving text requires separately configured software; it is not established by seeing text you typed in CWX. CW Auto Tune only adjusts tuning; it does not establish text-decoding support.
Why does typed text transmit immediately?
CWX Live is enabled. Turn it off for reviewed text followed by Send/Enter.
Does the M front panel use these Windows paths?
This guide explicitly uses the Windows client. Use the hardware manual for standalone M controls; the shown M photo identifies the hardware variant.
