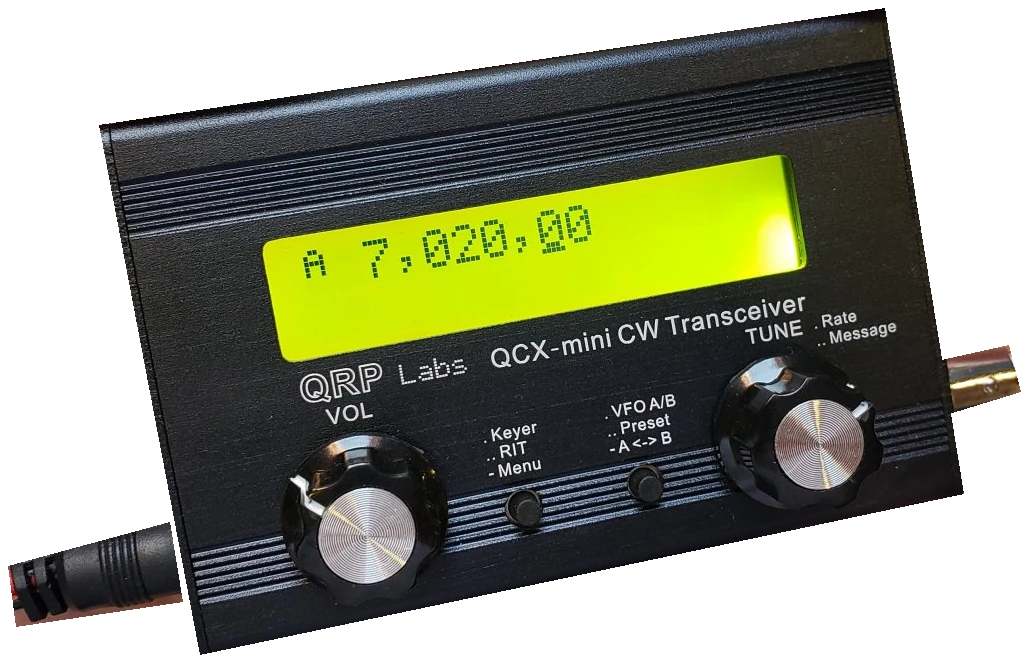

QCX-mini/QCX+CW Operating Guide
QCX-mini and QCX+ share the checked firmware operation; each radio is assembled for its selected single band. This guide starts after construction and alignment. Check current kit stock and assembled-unit lead times on the manufacturer status page.
QCX-mini/QCX+CW operating workflow
English QCX Operating Manual firmware 1.08/1.09, edit 0.04; standard hardware and firmware, not unofficial derivatives. Checked 2026-10-07; original firmware; printed manual pages unless marked PDF.
START HERE
A five-step CW setup routine
Use this order as an operating checklist, not as a replacement for the radio manual. Controls and available options can vary by firmware and region.
Check the test setup
Enable Practice and look for P beside the frequency.
Set rhythm and tone
Choose keyer mode and verify speed and clean spacing.
Tune one signal
Tune to the audio center, then enable received text if desired.
Send and listen
Check antenna and power, disable Practice and send a short call.
RECEIVE ASSISTANCE
CW decoding: enable, tune and recover
Received text, transmitted text and CW menu editing have independent switches. Tune the audio first; the decoder’s averaging controls are for difficult conditions, not a compulsory setup ritual.
Enable Rx
Open Decoder > Enable Rx and enable it.
Match the audio center
Use a compatible CW filter center on QMX; preserve the approximately 700 Hz hardware-filter alignment on QCX.
Inspect the lower line
Listen to one complete call and compare the lower-line text. Enable Tx alone cannot provide incoming text.
Adjust only if necessary
Keep baseline averaging values until tuning is correct. Change only one value and restore it if the text gets worse.
When decoding needs help
No text
Return to the receive-decode setting above, confirm a steady audible CW signal and retune before changing more parameters. Transmit echo alone does not confirm receive decoding.
Garbled text
Listen to one complete call and compare it with the display. Fading and irregular spacing can defeat the decoder; request a repeat and copy by ear instead of completing an uncertain callsign from guesses.
Another station takes over
Center the wanted signal first, then narrow the receive filter gradually. If the wanted tone disappears, widen the filter and tune again. Stop adjusting when a clear tone and stable text agree.
MODEL SETTINGS INDEX
CW settings, paths, and starting points
Search by setting or menu path. Manufacturer defaults and recommendations are labeled separately from CW599 advice; references identify the checked manual or software version.
Keyer
Choose straight or paddle operation
- Access path
Keyer > Keyer mode- Options or range
- Straight / Iambic A / Iambic B / Ultimatic
- Factory value / operating start
- Manual illustrated value (not independently confirmed as factory default): Straight.
CW599 note: Select the physical key you connected and test separate elements in Practice mode. Choose a familiar iambic response before adjusting weight or automatic spacing.
Keyer
Adjust keyer speed from the front panel
- Access path
Tap Select > turn TUNE > tap Select- Options or range
- Displayed WPM
- Factory value / operating start
- CW599: change only after the listening or keying check below.
CW599 note: Adjust while in Practice and listen to the character spacing. The new speed also affects stored-message playback; check a short message before transmitting.
Manual reference: QCX Operating Manual 1.08/1.09, pp. 7–9, 52
Keyer
Reverse paddle contacts in the menu
- Access path
Keyer > Keyer swap- Options or range
- ON / OFF
- Factory value / operating start
- CW599: change only after the listening or keying check below.
CW599 note: Use swap when the dot and dash directions are reversed. Test a single press on each side and an alternating sequence before storing any message.
Keyer
Use Practice to block RF
- Access path
Keyer > Practice- Options or range
- ON / OFF
- Factory value / operating start
- Manual default: OFF; CW599: ON for setup.
CW599 note: Enable Practice and confirm P beside the frequency. The keyer and text display still work, allowing you to test spacing without putting a practice message on the antenna.
Keyer
Keep weighting neutral while learning
- Access path
Keyer > Keyer Weight- Options or range
- 050–950
- Factory value / operating start
- Manual default: 500.
CW599 note: 500 represents 50.0% dot duty cycle. Keep it while checking your spacing; weight changes element and gap durations together, so it is not a substitute for adjusting WPM.
Break-in
Choose full or delayed recovery
- Access path
Keyer > Semi QSK- Options or range
- OFF / ON
- Factory value / operating start
- Manual illustrated value (not independently confirmed as factory default): OFF.
CW599 note: OFF selects full QSK; ON holds receive for eight dot lengths. Compare listening comfort with your own keying before selecting faster recovery.
Receive
Keep filter and tone aligned
- Access path
VFO > CW offset; Keyer > Sidetone frq- Options or range
- Fixed analogue filter near 700 Hz
- Factory value / operating start
- Manual CW offset and sidetone defaults: 700 Hz.
CW599 note: Keep the sidetone and CW offset near the hardware filter center. Moving the audio reference far away can make a correctly tuned station seem weak because the analogue filter is fixed.
Receive
Enable received text separately
- Access path
Decoder > Enable Rx- Options or range
- ON / OFF
- Factory value / operating start
- CW599: explicitly enable receive decoding when you want received text.
CW599 note: Enable Rx controls incoming text on the lower line; Enable Tx controls your sending. If no text appears, confirm Rx first, then tune the signal before experimenting with averaging controls.
Receive
Avoid over-filtering the decoder timing
- Access path
Decoder > Noise blnk. / Speed avg. / Ampl. Avg.- Options or range
- Impulse rejection; speed and amplitude averaging
- Factory value / operating start
- Manual illustrated values (not independently confirmed as factory defaults): 10 / 07 / 60.
CW599 note: Change one parameter and compare the same signal. Excessive blanking can remove short dots, while slow averaging can miss the start of a new caller; return to the recorded baseline if readability worsens.
Memory / PC
Check message capacity and the stop action
- Access path
Messages > Message 1–12 / Interval / Repeats- Options or range
- Messages 1–4: 100 characters; 5–12: 50 characters
- Factory value / operating start
- CW599: change only after the listening or keying check below.
CW599 note: Edit with the encoder or enabled CW menu decoder. Repeats 0 means indefinite transmission, so begin with single playback in Practice. Press Exit or the key to cancel sending.
Manual reference: QCX Operating Manual 1.08/1.09, pp. 9–10, 14–15
No matching settings. Try a shorter search or clear the search and category.
CW599 RECOMMENDATIONS
Three operating starting points
These are original operator-oriented starting points. They are not factory presets and intentionally avoid claiming model-specific default values.
First contact
Check one change at a time.
- Keying: Match the actual key and verify clean spacing
- Transmit: Check the documented RF-off or dummy-load setup first
- Receive: Use a comfortable tone and moderate volume
Difficult reception
Keep the wanted signal audible.
- Tuning: Center the wanted note before narrowing
- Filter: Compare changes at a similar audio level
- Copying: Ask for a repeat when a callsign remains uncertain
Repeated calls
Leave a clear path back to receiving.
- Sending: Verify any supported message and its stop action
- Listening: Leave time for an answer
- Station: Confirm frequency, power and transmit recovery
Questions and troubleshooting
Why is there no RF with normal keyer sound?
Practice blocks RF and shows P. Confirm the station before disabling it.
Can I copy QMX filter settings to QCX?
No. QMX has configurable DSP passbands; QCX uses an analogue CW filter with a fixed center.
Why does transmitted text work but received text fail?
Enable Tx and Enable Rx are separate. Confirm Rx, tune to the filter center and reduce adjacent interference before changing timing averages.
